Agents required portable cnc flame/plasma cutting machine/1325 1530 price of plasma in china

FOB Reference Price:Get Latest Price
US $4,200-5,100 / Units | 1 Unit/Units (Min. Order)
Model Number:
ZZ-G
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ZHAOZHAN
Voltage:
220V
Rated Power:
400W
Dimension(L*W*H):
3280*760*960
Weight:
1100kg
Certification:
CE ISO
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Agents required portable cnc flame/plasma cutting machine
Model:
ZZ-2040G-ST/ZZ-2540G-ST/ZZ-2040G-ST2/ZZ-2540G-ST2
Effective cutting range:
1500*3000mm/2000*6000mm
Track Length:
4000mm
Optional Torch Quantity:
Plasma/Flame/Plasma+Flame
Transmission Style:
Rack and Gear
Moving Speed:
0-4000/6000mm/min
Cutting thickness:
Depend on Plasma Source
Flame Auto Igniter:
Included in Flame Device
Model Number:
ZZ-G
Supply Ability
Supply Ability:
999 Unit/Units per Month
Packaging & Delivery
Packaging Details
Agents required portable cnc flame/plasma cutting machine/1325 1530 price of plasma in china
the package of wooden case
3280*760*960mm GW.200KG
2230*460*230mm GW.200KG
Port
Shanghai

Agents required portable cnc flame/plasma cutting machine/1325 1530 price of plasma in china

Product Description

Name

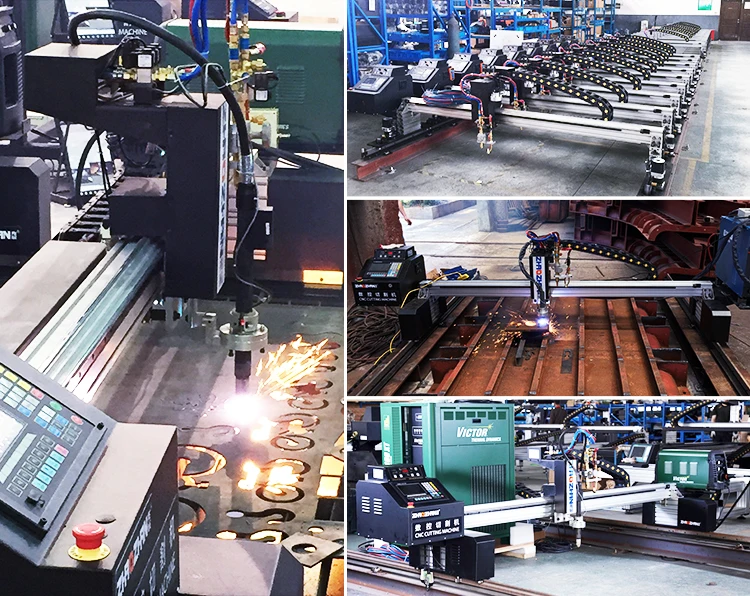

MINI GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE



Model

ZZ-2040G-ST

ZZ-2540G-ST

ZZ-2040G-ST2

ZZ-2540G-ST2



Motor Style

Dual Drive of 57 Series Step Motors + Reduce Gear Boxes

Dual Drive of 86 Series Step Motors + Reduce Gear Boxes



Effective Cutting Range for each Tool X*Y

1500*3000mm

2000*3000mm

1500*3000mm

2000*3000mm



Customizing

Track length (effective cutting length Y axis) can be customized for extending cutting length

Track length (effective cutting length Y axis) can be customized for extending cutting length



Tracks Between Distance

2000mm

2500mm

2000mm

2500mm



Track length

4000mm

4000mm

4000mm

4000mm



Tool Quantity

One Tool

One Tool



Torch Height Control Style

Flame THC : Optional  / Plasma THC: Optional

Flame THC : Optional  / Plasma THC: Optional



One Tool only can support one Flame THC or one Plasma THC



Max.Cutting Torch Quantity

2 sets, as plasma and flame torches replaceable

2 sets, as plasma and flame torches replaceable



Optional Torch Style (Plasma:P Flame:F)

P / F / P+F

P / F / P+F



Moving Speed

0-4000mm/min

0-6000mm/min



Input Power

Single Phase AC 220V

Single Phase AC 220V



Approximately 600W

Approximately 1000W



Cutting Modes

Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting



Transmission Style

Rack And Gear



Torch Lifting Distance (Z)

≤90mm



Working Precision

± 0.2 mm / meter



Flame (Gas) Cutting Thickness

Piercing Capacity: 5 - 60 mm     Edge Start: 5 - 120mm




Plasma Cutting Thickness

Depends on the cutting capacity of the Plasma Generator



Flame Auto Igniter

Include in Flame Device



Gas Pressure

Acetylene Gas or Propane Gas Max  0.1Mpa



Oxygen Pressure

Oxygen Gas Max  0.8Mpa



Cutting Table And Base

We will supply drawings of cutting table.
Base (H-beam) and cutting table are not supplied.





Product Details

1.Y axis and X axis used dual drive step motors. Machine in high working precision and location precision, because used high precision rack and gear, and used hard spring to keep good match. That can decrease meshing error and increase the smoothness of power transmission. Good mechanical processing and installation with high decision gear boxes and with CNC system testing of the location and speed detect, keep the machine in good performance.

2.X axis and Y axis both used cable chain to protection wiring. Machine with smart out looking, with 80120 profile material. Machine is strong and

3.This machine designed smart and with high cost-effective ratio. It is much better stability and performance than cantilever style CNC cutting machine, and same as heavy duty gantry machine with dual drive. Can work both with plasma and flame. It is one of the good selling machine in the oversea market.

4.It can be update to MINI PLUS version, which is supplied cutting table, and stand control cabinet. Then it will become a desktop style CNC cutting machine
