Environmental Steel Structure Table Style Cnc Flame Plasma Cutting Machine

FOB Reference Price:Get Latest Price
US $8,500-12,000 / Sets | 1 Set/Sets Steel Structure Table Style Cnc Flame Plasma Cutting Machine (Min. Order)
Model Number:
CNCUT S
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ZHAOZHAN
Voltage:
220V 50/60Hz single phase
Rated Power:
2000W
Dimension(L*W*H):
13000*3100*1600mm/
Weight:
500kg
Certification:
CE
Warranty:
ONE YEAR
After-sales Service Provided:
Overseas service center available
Name:
Steel Structure Table Style Cnc Flame Plasma Cutting Machine
Cutting Speed:
0-10000mm/min
Moving Speed:
0-10000mm/min
Cutting Depth:
100mm
Cutting Diameter Range:
10-2000mm
BEVEL CUTTING:
0.2mm
Program and ethyne gas cutting:
available
Power Supply:
AC220V±10% 50/60HZ
Numbers of torch:
one (flame or plasma) / can order two torches on one slider
Plasma generator:
HYPERTHERM OR VICTOR
Supply Ability
Supply Ability:
200 Set/Sets per Year Steel Structure Table Style Cnc Flame Plasma Cutting Machine
Packaging & Delivery
Packaging Details
Steel Structure Table Style Cnc Flame Plasma Cutting Machine:
Packaging of Plywood case:
Port
Shanghai
Lead Time :
Shipped in 10 days after payment

Environmental Steel Structure Table Style Cnc Flame Plasma Cutting Machine

Product Description

1) The complete set of machine tool is anti-deformed, durable, economical and decent after the disposal of stress relieving.

2) The good quality smoke processor (Optional) attached can purify air and reduce gas exhausts which guarantees the hygiene of the working place and does good to the human health.

3) Cutting Range: 2500*1300mm.

4) The tailored cutting table boasts sturdy and durable features. And the support board of it is easy to move and can be replaced conveniently.

2. Product features:

1) The tailored track with dual drive acquires zero-noise, high-intensity, high-speed and high-precision features.

2) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.

3) The smoke processor and exhaust system are easy to handle and yield prominent results.

4) Grid design for collection working piece is easy to handle and can prevent it and the wastes into exhaust system.

5) The same function of CNC table cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.

6) With the function of cutting metal plates into any shapes.

7) With two cutting modes: Flame Cutting & Plasma Cutting.

8) Chinese, English, French, and Portuguese are ready to use.

9) Can automatically memorize and restore when power is off.

10) Can choose Plasma THC ( torch height control) device.

Plasma high frequency proofed which guarantees the  safety of the plasma cutting.

Name

ENVIRONMENTAL STEEL STRUCTURE TABLE STYLE CNC FLAME PLASMA CUTTING MACHINE

Model

CNCUT-1325S-ST

CNCUT-1530S-ST

CNCUT-2030S-ST

CNCUT-1325S-SE

CNCUT-1530S-SE

CNCUT-2030S-SE

Motor Style

Dual Drive of 86 Series Step Motors + Reduce Gear Boxes

Dual Drive of Panasonic Servo Motors + Reduce Gear Boxes

Effective Cutting Range for each torch X*Y

1300*2500mm

1500*3000mm

2000*3000mm

1300*2500mm

1500*3000mm

2000*3000mm

Customizing

Track length (effective cutting length Y axis) can be customized for extending cutting length

Tracks Between Distance

1830mm

2030mm

2530mm

1830mm

2030mm

2530mm

Track length

3200mm

3700mm

3700mm

3200mm

3700mm

3700mm

Tool Quantity

One Tool

One Tool

One Tool

One Tool

One Tool

One Tool

Torch Height Control Style

Flame THC : Optional  / Plasma THC: Optional

One Tool only can support one Flame THC or one Plasma THC

Max.Cutting Torch Quantity

2 pieces

2 pieces

2 pieces

2 pieces

2 pieces

2 pieces

Optional Torch Style (Plasma:P Flame:F)

P / F / P+F

P / F / P+F

P / F / P+F

P / F / P+F

P / F / P+F

P / F / P+F

Moving Speed

0-6000mm/min

0-10000mm/min

Input Power

Single Phase AC 220V (3 phase AC 380V for environmental equipment)

Single Phase AC 220V (3 phase AC 380V for environmental equipment)

Approximately 1200W + (2200W smoke filter)

Approximately 1500W + (2200W environmental equipment)

Cutting Modes

Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting

Transmission Style

Rack And Gear

Torch Lifting Distance (Z)

≤100mm

Working Precision

± 0.1 mm / meter

Flame (Gas) Cutting Thickness

Piercing Capacity: 5 - 60 mm    Edge Start: 5 - 120mm

Plasma Cutting Thickness

Depends on the cutting capacity of the Plasma Generator

Flame Auto Igniter

Include in Flame Device

Gas Pressure

Acetylene Gas or Propane Gas Max  0.1Mpa

Oxygen Pressure

Oxygen Gas Max  0.8Mpa

Cutting Table

Integrated designed table will be supplied.

Environmental protection equipment

The smoke and dust absorbing device will follow the cutting torch, making air absorb 93% efficiency.

Dust filter container will deposit dust, and not release any polluted air. It is easy to operate, and low cost, and easy to be cleaned.

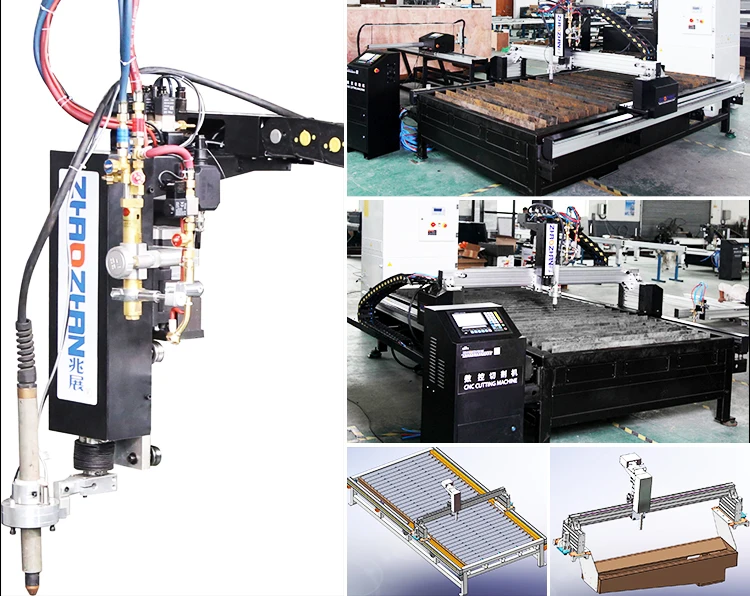

Product Details
